Electrical Characteristics
Standards
Web site: www.arizonrfid.com
Arizon RFID Technology
Copyright © Rev.4 2020
All rights reserved

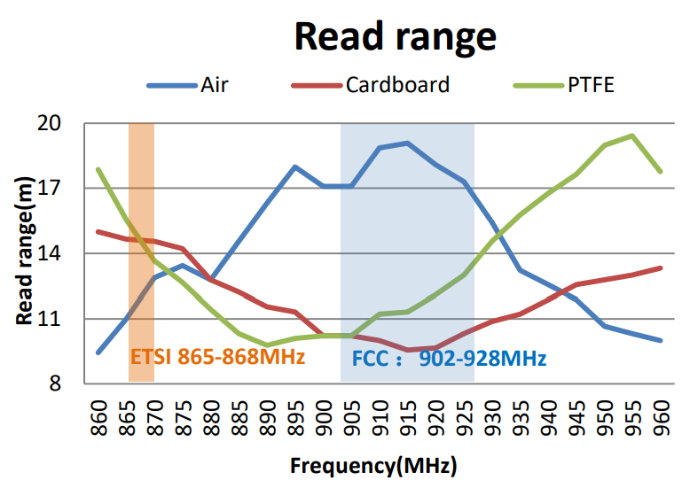

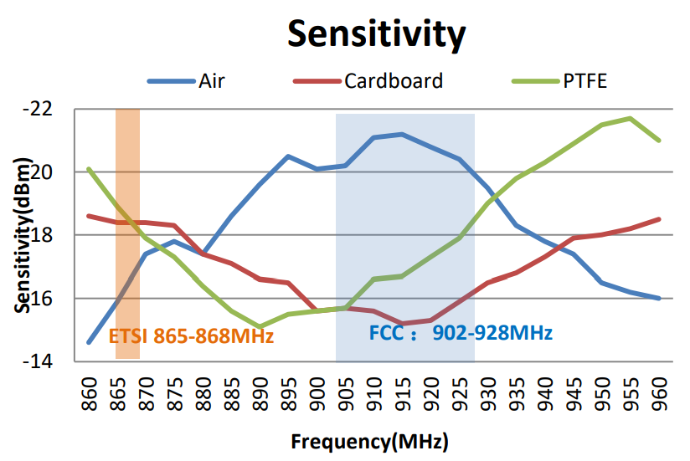

Frequency Sweep
All the graphs are based on our lab testing：performance in real life applications may vary.
Test power：4W EIRP. For countries that allow 2W ERP, please reduce the result by 11%.
Radiation Patterns

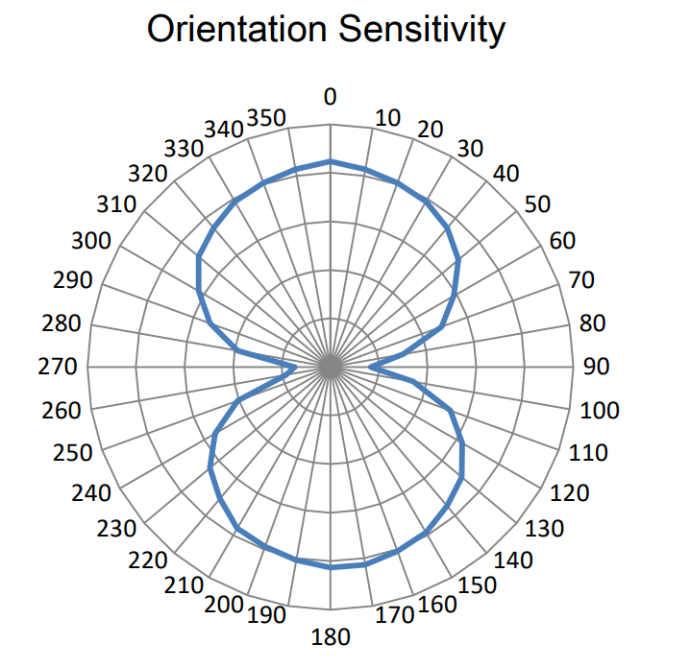

Orientation Sensitivity
Inlay is rotated in the x,y axis, fixed in z axis (Tag shown at 0° with respect to face of antenna)
ARC approved inlay spec
| F | H | I | L | Q | O | P | R | T | U | S |
|
●
|
●
| ● | ● | ● | ● | |||||
| Z | W5 | W6 | Y2 | C2 | ||||||
|
●
|
●
|
●
| ||||||||
| ● :Pass |
Auburn University Testing Center:
RFID UHF Band: 800-1000MHz; Shielding effectiveness > 100 dB; Background noise: <-75 dB
Compatible to the following international standard:
EPC Global Class1 Gen2; ISO 18000-63; GS1 TIPP (Tagged Item Performance Protocol)
