AZ-FR7L

Arizon RFID Technology, is a leading company to provide first-class manufacturing services of inlays / tags / tickets and cards for worldwide RFID industry. All products conform to highest quality standards in HF and UHF technology for its valuable customers.

Operating Frequency: 860MHz-960MHz
Integrated Circuit(IC): Impinj M700 series
Protocol: EPC Class1 Gen2 ‧ ISO/IEC 18000-63

Market segment: Animals and farming

Chip: Impinj M700 Series

Antenna Sizes in mm: OD: 24mm ID: 12mm

EPC Memory: 496 bits/128 bits

User Memory: 128 bits/512 bits

Electrical Characteristics

Antenna / AZ-FR7L
Substrate Material	PET
IC	Impinj Monza	M730	M750	M780	M781
Memory	EPC:	128 Bits	96 Bits	496 Bits	128 Bits
	User:	0 Bits	32 Bits	128 Bits	512 Bits
	TID:	48 Bits	48 Bits	48 Bits	48 Bits
	Unique TID:	48 Bits	48 Bits	48 Bits	48 Bits
	Access Password:	Shared 32bits Password for Access/Kill
	Kill Password:	Shared 32bits Password for Access/Kill
IC Life	10,000 Programming cycles
IC Life	10 years data retention
Operating Mode	Passive
Operating tempeature	- 40℃ to 85℃

Standards

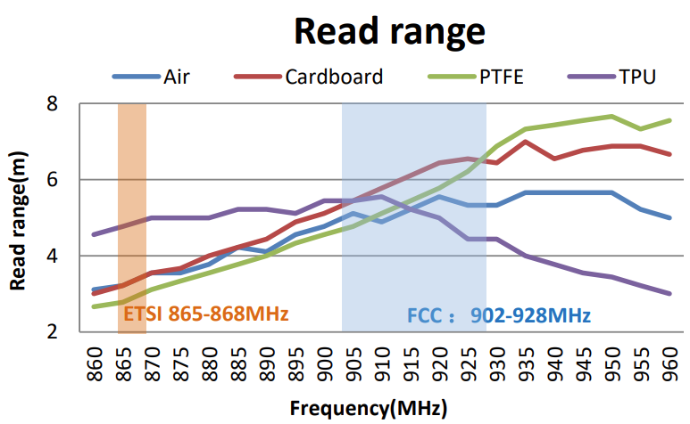

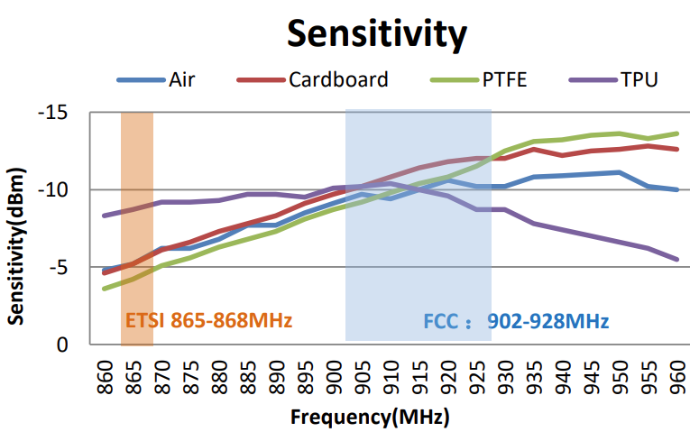

Frequency Sweep

All the graphs are based on our lab testing：performance in real life applications may vary.
Test power：4W EIRP. For countries that allow 2W ERP, please reduce the result by 11%.

Radiation Patterns

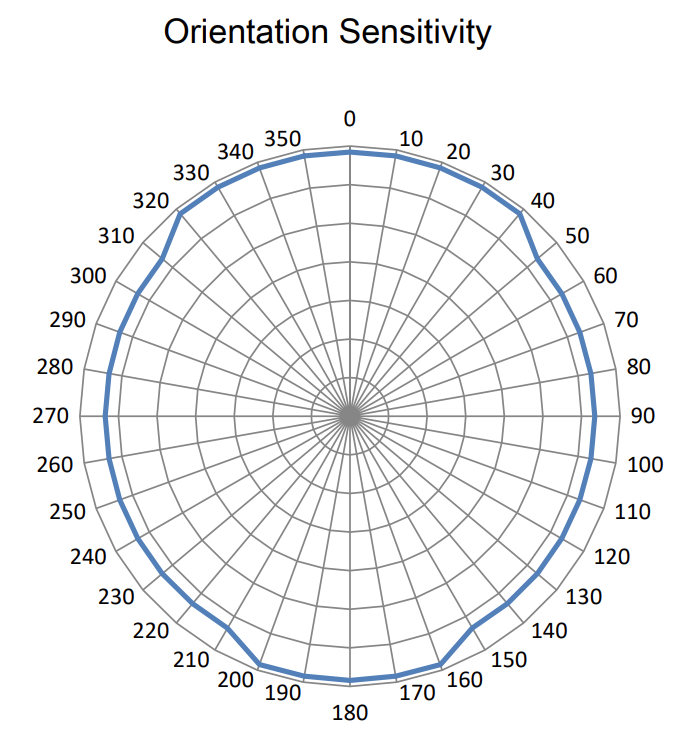

Orientation Sensitivity

Inlay is rotated in the x,y axis, fixed in z axis (Tag shown at 0° with respect to face of antenna)

Auburn University Testing Center:
RFID UHF Band: 800-1000MHz; Shielding effectiveness > 100 dB; Background noise: <-75 dB
Compatible to the following international standard:
EPC Global Class1 Gen2; ISO 18000-63; GS1 TIPP (Tagged Item Performance Protocol)
