AZ-DR8

Arizon RFID Technology, is a leading company to provide first-class manufacturing services of inlays / tags / tickets and cards for worldwide RFID industry. All products conform to highest quality standards in HF and UHF technology for its valuable customers.

Operating Frequency: 860MHz-960MHz
Integrated Circuit(IC): Impinj M800 series
Protocol: EPC Class1 Gen2 ‧ ISO/IEC 18000-63

Application Area
- Brand Protection Tag
- Temper Proof Tag
- Supply Chain Management Tag
- Blood bag Tag
- Apparel

This combination does not exist.

Market segment: Healthcare and medical

Chip: Impinj M800 Series

Antenna Sizes in mm: 95x3

EPC Memory: 128 bits/96 bits

User Memory: 0/32 bits

Electrical Characteristics

Antenna / AZ-DR8
Substrate Material	PET
IC	Impinj Monza	M830	M850
Memory	EPC:	128/96Bits (Default128bits)	96/128Bits(Default96bit)
	User:	0/32Bits	32/0Bits
	TID:	48Bits	48Bits
	Unique TID:	48Bits	48Bits
	Access Password:	Shared 32bits Password for Access/Kill	Shared 32bits Password for Access/Kill
	Kill Password:	Shared 32bits Password for Access/Kill	Shared 32bits Password for Access/Kill
IC Life	10,000 Programming cycles
IC Life	10 years data retention
Operating Mode	Passive
Operating tempeature	- 40℃ to 85℃

Standards

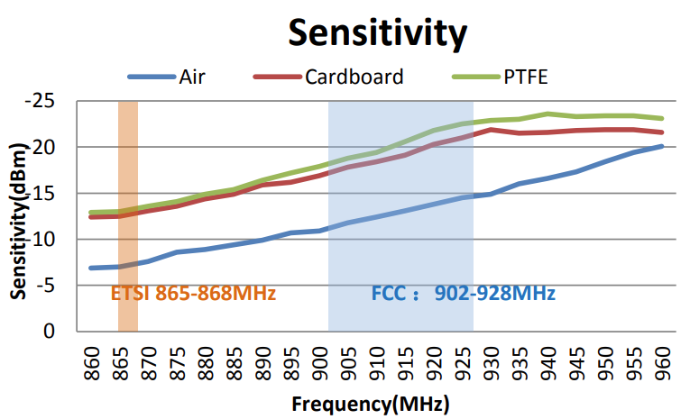

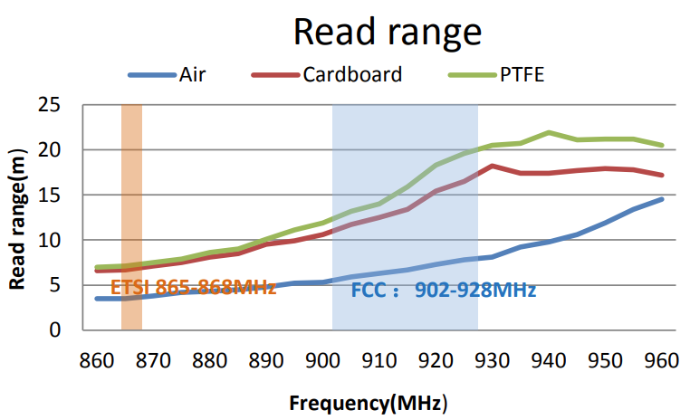

Frequency Sweep

All the graphs are based on our lab testing：performance in real life applications may vary.
Test power：4W EIRP. For countries that allow 2W ERP, please reduce the result by 11%.

Radiation Patterns

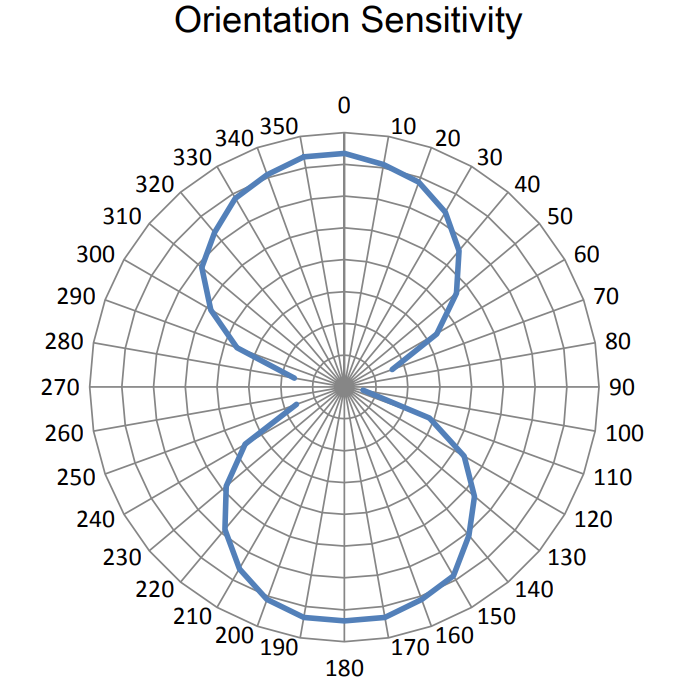

Orientation Sensitivity

Inlay is rotated in the x,y axis, fixed in z axis (Tag shown at 0° with respect to face of antenna)

Auburn University Testing Center:
RFID UHF Band: 800-1000MHz; Shielding effectiveness > 100 dB; Background noise: <-75 dB
Compatible to the following international standard:
EPC Global Class1 Gen2; ISO 18000-63; GS1 TIPP (Tagged Item Performance Protocol)
