AZ-AM669

Arizon RFID Technology, is a leading company to provide first-class manufacturing services of inlays / tags / tickets and cards for worldwide RFID industry. All products conform to highest quality standards in HF and UHF technology for its valuable customers.

Operating Frequency: 860MHz-960MHz
Integrated Circuit(IC): Impinj Monza R6 series
Protocol: EPC Class1 Gen2 ‧ ISO/IEC 18000-63

Application Area
- Brand Protection Tag
- On-metal Tag
- Supply Chain Management Tag
- Asset Management Tag

This combination does not exist.

Market segment: Industrial Manufacturing

Chip: Impinj Monza R6

Antenna Sizes in mm: 69x35

EPC Memory: 96 bits

User Memory: 0 bits

Electrical Characteristics

Antenna / AZ-AM669
Substrate Material	PET
IC	Impinj Monza	R6	R6-A	R6-P
Memory	EPC:	96 Bits	96 Bits	128(96) Bits
	User:	0 Bits	0 Bits	32(64) Bits
	TID:	48 Bits	48 Bits	48 Bits
	Unique TID:	48 Bits	48 Bits	48 Bits
	Access Password:	0 Bits	32 Bits	32 Bits
	Kill Password:	0 Bits	32 Bits	32 Bits
IC Life	100,000 Programming cycles
IC Life	50 years data retention
Operating Mode	Passive
Operating tempeature	- 40℃ to 85℃

Standards

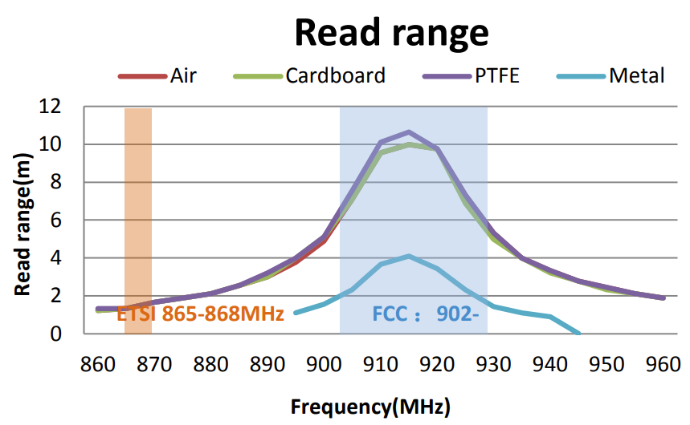

Frequency Sweep

All the graphs are based on our lab testing：performance in real life applications may vary.
Test power：4W EIRP. For countries that allow 2W ERP, please reduce the result by 11%.

Radiation Patterns

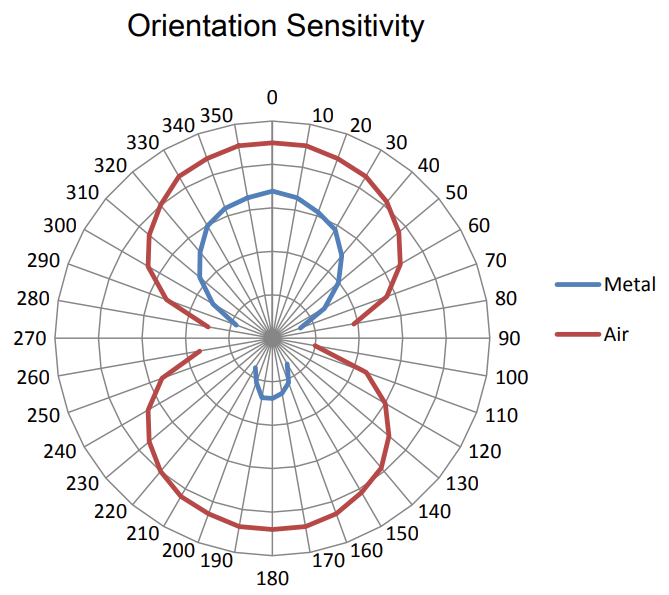

Orientation Sensitivity

Inlay is rotated in the x,y axis, fixed in z axis (Tag shown at 0° with respect to face of antenna)

Auburn University Testing Center:
RFID UHF Band: 800-1000MHz; Shielding effectiveness > 100 dB; Background noise: <-75 dB
Compatible to the following international standard:
EPC Global Class1 Gen2; ISO 18000-63; GS1 TIPP (Tagged Item Performance Protocol)
